Structured Cabling Installation for JRPA Travel and Tours: A Seamless Network Infrastructure for a Modern Office
Introduction
In today’s digital-first business environment, structured cabling is a foundational element for operational efficiency, scalability, and connectivity. For growing companies like JRPA Travel and Tours, a newly built office presents a unique opportunity to lay the groundwork for reliable, future-proof network infrastructure. That’s why JRPA Travel and Tours entrusted us with the complete structured cabling implementation for their new headquarters—an end-to-end solution that included the placement of fiber optic cables for their internet service and CAT6 Ethernet cabling to all designated network sockets.
This article details the structured cabling services we provided for JRPA Travel and Tours, including project scope, implementation process, outcomes, and benefits. It serves as a reference for businesses looking to understand the impact of structured cabling on organizational efficiency, especially in newly constructed office environments.
Overview of the Client: JRPA Travel and Tours
JRPA Travel and Tours is a dynamic travel services provider offering customized travel packages, tour planning, ticketing, and travel consultation. With their increasing client base and digital operations, seamless internet connectivity and internal communication became mission-critical. As the company prepared to move into a newly constructed facility, the opportunity to build a structured, centralized, and high-performance network from scratch was a strategic advantage.
Structured Cabling: What It Means and Why It Matters
Structured cabling refers to a standardized approach to cabling infrastructure that supports multiple hardware systems for telephone services, data transmission, and video communication. Unlike point-to-point cabling or makeshift wiring solutions, structured cabling organizes network infrastructure into manageable subsystems that can easily be scaled, maintained, and troubleshot.
Key advantages of structured cabling include:
- Faster data transmission
- Reduced network downtime
- Cleaner, more organized installations
- Better airflow and reduced cable clutter
- Easier scalability and equipment upgrades
- Future readiness for advanced technologies
Services Delivered to JRPA Travel and Tours
The structured cabling solution delivered to JRPA Travel and Tours consisted of the following core services:
Placement of Fiber Optic Cabling for the Internet Provider
- Installed fiber optic lines from the provider’s entry point to the network distribution point
- Used protective conduit for safety and long-term durability
- Terminated and tested fiber strands for loss and continuity
- Coordinated with the ISP to ensure signal quality and connectivity
Placement of CAT6 Ethernet Cables to Each Ethernet Port Socket
- Pulled CAT6 UTP (Unshielded Twisted Pair) cables from the main patch panel to over 24 designated data sockets
- Installed RJ45 connectors and mounted faceplates, including both wall-mounted and floor-mounted outlets
- Performed continuity and speed testing on all network points
Initial Site Assessment and Planning
Before implementation, our team conducted a comprehensive site inspection and consultation session with JRPA’s management and IT consultants. As the facility was newly constructed, we had the advantage of working with a clean slate—an environment free from legacy systems or prior constraints.
Our key considerations during this phase included:
- Number of users and network endpoints
- Server room location and layout
- Equipment power requirements
- Network redundancy and future scalability
- Placement of access points for Wi-Fi coverage
Once the layout was finalized, a network topology diagram was created. This detailed blueprint outlined the location of the main distribution frame (MDF), intermediate distribution frames (IDFs), cable pathways, and wall socket positions.
Implementation Phase
1. Conduit and Raceway Installation
To ensure cable longevity and protection from environmental damage, we began by installing raceways and conduits through ceilings and underfloor channels. This made it possible to route both fiber optic and Ethernet cabling discreetly and securely.
2. Fiber Optic Cable Installation
Fiber optic cables offer high-speed data transmission over long distances with minimal loss. Given the client’s preference for maximum internet performance, our team pulled fiber optic cables from the building’s telecom service entrance to the server rack in the main network room.
Key steps included:
- Fusion splicing fiber strands for optimal signal quality
- Testing for attenuation, return loss, and polarity
3. CAT6 Ethernet Cabling
CAT6 cables provide excellent performance for Gigabit Ethernet and are future-proof for many next-generation technologies. For JRPA, we installed CAT6 cabling to each network outlet across multiple office zones including:
- Executive offices
- Shared workspaces
- Reception area
- Customer service desks
Each cable was terminated using T568B standards and tested using a Fluke Networks cable certifier to ensure it met the 250 MHz performance requirement for CAT6.

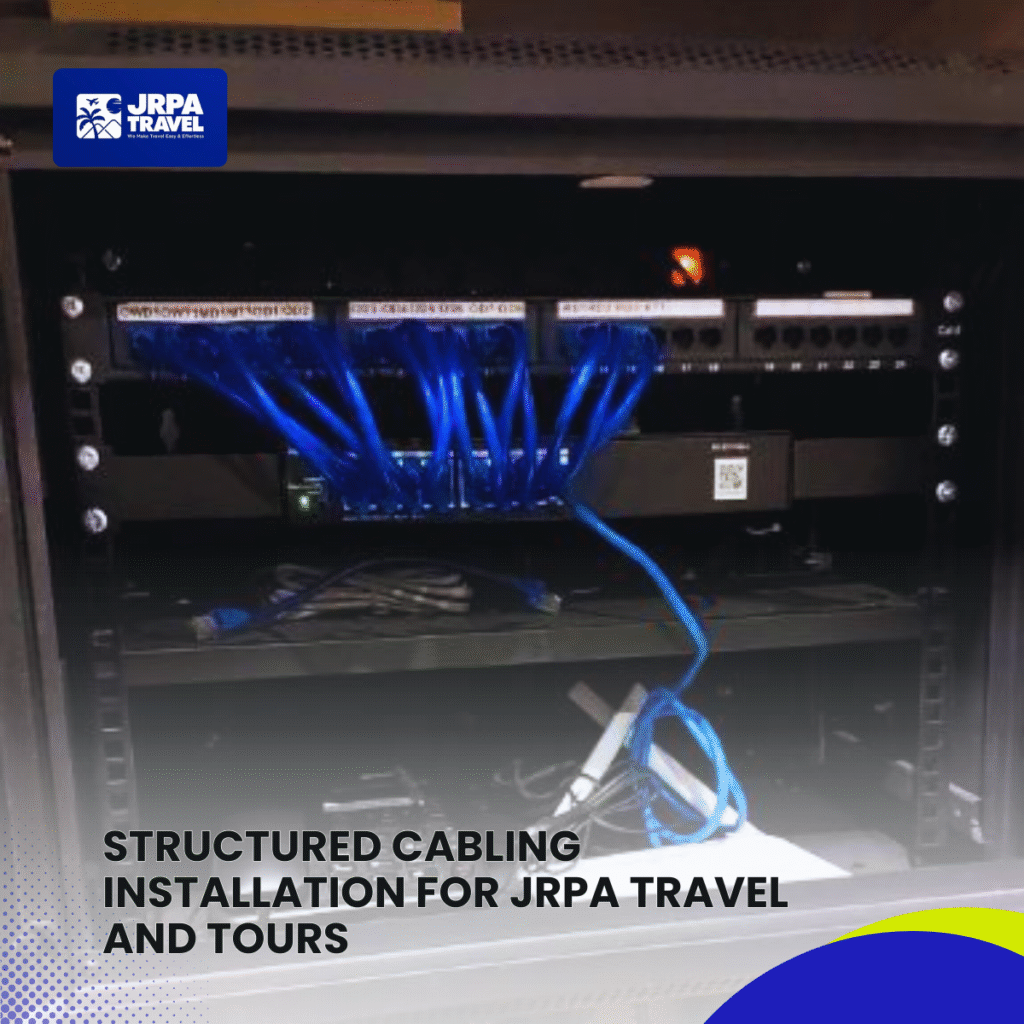

4. Patch Panel Configuration
All Ethernet cables were terminated at a 24-port patch panel mounted inside a 42U server rack. Patch cords were used to connect the panel to a managed Gigabit switch. The server rack was also prepared for power distribution, cooling, and expansion hardware.
5. Final Testing and Validation
Upon completing the cabling work, we conducted full system diagnostics. This included:
- End-to-end continuity tests for all Ethernet lines
- Loopback and ping tests for live data verification
- Fiber optic light source and power meter testing
- Visual inspection for cable bends, tension, and grounding
All test results met or exceeded industry standards.
Visual Quality and Cable Management
A professional installation doesn’t only perform well—it also looks organized. Our technicians used Velcro straps, and cable trays, and labeled patch panel sockets to ensure that the final setup was neat and maintenance-friendly. Labeling was applied at both ends of each cable for easier identification, future tracing, and documentation.
Sustainability and Long-Term Value
Structured cabling is not just about today’s performance—it’s a long-term investment in flexibility and cost savings. JRPA Travel and Tours can add new users, rearrange office spaces, or integrate additional technologies without needing to overhaul their network infrastructure.
The materials used, such as low-smoke zero-halogen cables and shielded conduits, also contribute to fire safety and environmental protection—both of which are considerations in modern commercial buildings.
Conclusion
The structured cabling solution we delivered to JRPA Travel and Tours transformed a blank construction site into a modern, connected workplace. Through meticulous planning, professional-grade materials, and technical excellence, we provided a foundation that supports business continuity, productivity, and growth.
Whether for internet access, internal file sharing, voice-over-IP (VoIP) communication, or cloud-based applications, JRPA now benefits from a network infrastructure that is robust, scalable, and future-proof.
As businesses continue to digitize and adopt more complex IT systems, structured cabling will remain a key enabler of operational success. If you are planning a new office or upgrading an existing one, investing in structured cabling from day one—like JRPA did—is a smart step toward ensuring long-term efficiency and connectivity.
