Demonstration on Terminating and Testing a Network Cable
Introduction
In today’s connected world, reliable network infrastructure is critical—and it all starts with properly terminated cables. We’re proud to present our latest professional instructional video, a step-by-step guide to LAN cable termination and testing. Whether you’re an IT technician, network installer, or a DIY enthusiast, this video provides the essential knowledge to ensure optimal performance and reliability in your network connections.
Informational Video.
The Importance of Proper Cable Termination.
A poorly terminated LAN cable can lead to:
✔ Intermittent connectivity or complete signal loss.
✔ Reduced network speeds due to crosstalk or interference.
✔ Costly troubleshooting and rework in large-scale installations.
Our tutorial eliminates guesswork by demonstrating industry-standard practices for crimping, testing, and validating Ethernet cables.
Video Breakdown: Key Learning Points.
1. Essential Tools & Materials
Before starting, the video highlights the necessary equipment:
Cable Types (CAT5e, CAT6, etc.) – Differences in bandwidth and shielding.
RJ45 Connectors (8P8C) – Standard vs. pass-through types.

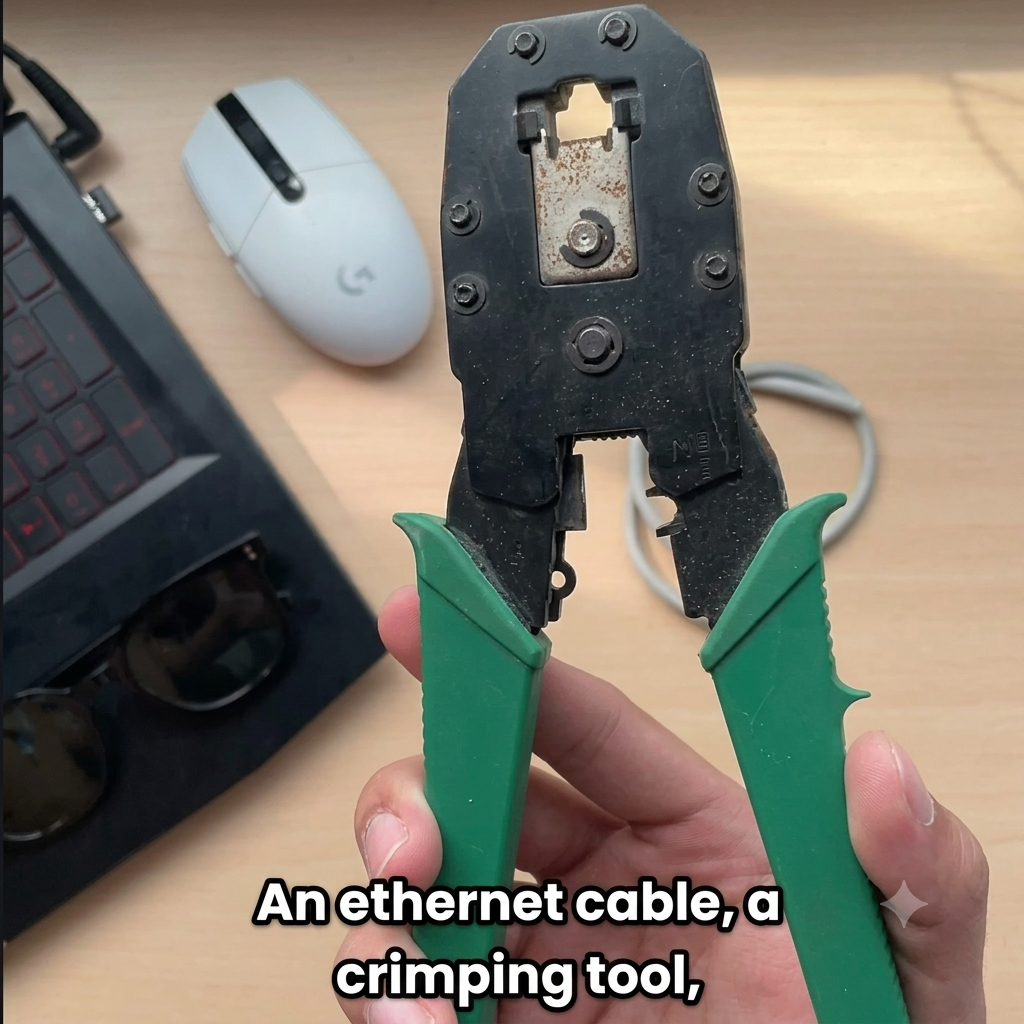

Crimping Tool – How to select a durable, precision tool.
LAN Cable Tester – Importance of verifying continuity and pinouts.
Wire Strippers & Snips – Proper techniques to avoid conductor damage.
2. Step-by-Step Termination Process
The video meticulously demonstrates:
✔ Stripping the Outer Jacket – Avoiding nicks to inner twisted pairs.
✔ Wire Arrangement (T568A vs. T568B) – When to use each standard.
✔ Trimming & Inserting Wires – Ensuring flush alignment in the connector.
✔ Crimping the RJ45 Plug – Applying even pressure for a secure termination.
3. Testing & Validation
A critical—but often overlooked—step:
Using a Cable Tester – Identifying opens, shorts, or miswires.
Interpreting Results – Understanding LED patterns for fault detection.
Troubleshooting Common Issues – Fixing reversed pairs or split conductors.
Practical Applications in Modern Networks
This instructional guide addresses real-world networking challenges across various environments:
✔ Enterprise Networks – Ensuring reliable connections for high-traffic office environments.
✔ Data Centers – Maintaining optimal performance in server rack installations.
✔ Industrial Settings – Creating durable connections resistant to interference.
✔ Smart Buildings – Supporting IoT devices and automation systems.
✔ Telecommunications – Meeting service provider standards for connectivity.
Quality Assurance & Performance Optimization
Our termination methodology delivers measurable benefits:
✔ Consistent Bandwidth – Maintains rated cable speeds without degradation.
✔ Reduced Downtime – Minimizes network failures from poor connections.
✔ Long-Term Reliability – Extends cable lifespan through proper strain relief.
✔ Troubleshooting Efficiency – Simplifies fault identification in complex networks.
✔ Future-Proofing – Ensures compatibility with emerging network standards.
Conclusion
Precision in cable termination isn’t just a technical skill—it’s the cornerstone of network reliability. Through this comprehensive guide, we’ve distilled years of professional expertise into actionable knowledge that empowers technicians to:
✔ Achieve First-Time-Right Installations – Eliminate callbacks and rework with proper technique.
✔ Deliver Consistent Performance – Ensure every connection meets or exceeds bandwidth specifications.
✔ Build with Confidence – Apply standards-compliant methods that stand the test of time.
This isn’t merely about connecting wires—it’s about crafting the robust infrastructure that keeps businesses connected, data flowing, and systems operational.
