Site inspection for CCTV installation at Doña Rita Village
Introduction
In today’s world, securing your home with reliable surveillance systems has become more of a necessity than a luxury. At Installersph IT Solutions, we are dedicated to providing tailored surveillance solutions that not only address the security needs of our clients but also enhance their peace of mind. One of our recent projects involved a comprehensive CCTV site inspection for a private residence located in the serene and secure neighborhood of Doña Rita Village. This article outlines the details of the site inspection, the logic behind camera placements, cabling routes, and DVR location—offering a glimpse into the technical planning and considerations that go into designing an efficient residential CCTV system.
Project Overview
The client requested a residential CCTV system with five cameras—four positioned outdoors for perimeter monitoring and one placed indoors. Additionally, one of the outdoor cameras was required to include an audio recording feature. The system needed to be discreet, reliable, and optimized for both day and night surveillance. During our on-site inspection, we evaluated the client’s layout, home structure, and points of vulnerability to propose an effective surveillance configuration.
Summary of Inspection Objectives:
- Identify optimal positions for 5 CCTV cameras (including 1 with audio).
- Determine CAT6 cable routing and drop points.
- Select an appropriate and secure location for the DVR unit.
- Ensure minimal aesthetic disruption and maximum security coverage.
Camera Placement Strategy
Proper camera placement is crucial to achieving complete surveillance coverage without blind spots. Here is a breakdown of each CCTV camera location, its purpose, and strategic benefit.

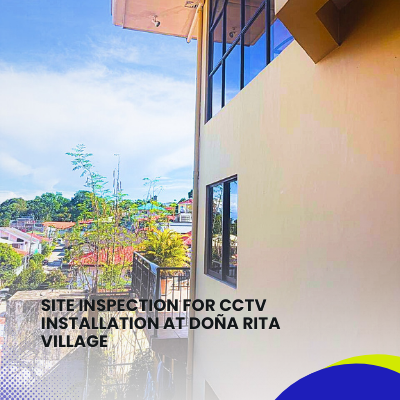

1. Left Side of the House – Outdoor Camera with Audio
Location: Mounted above the fence on the left side of the house.
This camera is positioned strategically to monitor pedestrian and vehicular traffic approaching the property from the left-hand perimeter. Equipped with a built-in microphone, this unit is essential for capturing audio in high-risk zones where verbal interaction may occur—such as conversations at the fence line or confrontations during delivery drop-offs or visitor entries.
Audio Surveillance Justification:
- Enables voice recording for incident documentation.
- Enhances real-time situational awareness.
- Useful in dispute resolution or verifying threats.
Technical Note: This camera required a shielded CAT6 cable to ensure clean transmission of both video and audio signals, reducing interference from nearby electrical wiring or external noise.

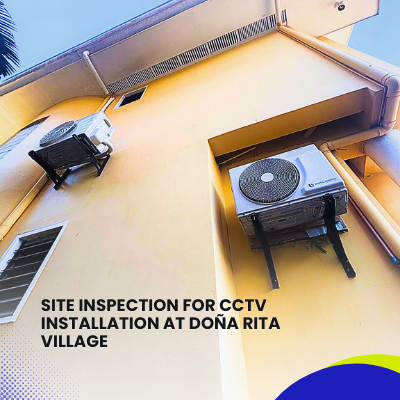

2. Back of the House – Outdoor Camera
Location: Central point on the rear exterior wall.
The rear side of many homes is often a blind spot—out of sight from the street and neighbors. This camera serves as a vital asset in monitoring backyard activity, garden areas, and potential points of unauthorized entry such as back doors or windows.
Key Benefits:
- Monitors activity in secluded areas.
- Deters trespassing or break-ins.
- Can be linked to motion alerts during nighttime.
The cabling for this camera was routed through the ceiling void and extended toward the DVR location, ensuring it remained hidden and tamper-resistant.

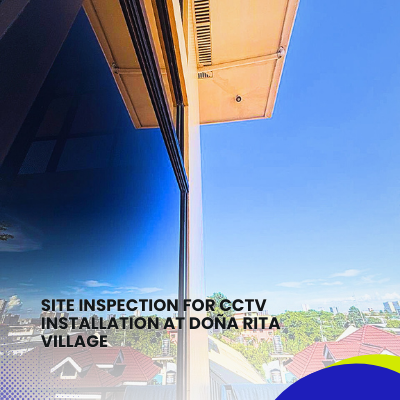

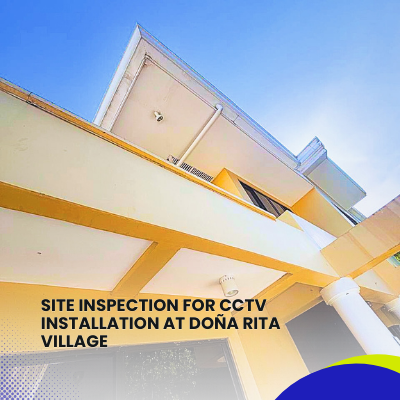

3. Right Side of the House – Outdoor Camera
Location: Mounted at eave height facing the right perimeter.
This camera offers coverage of the opposite boundary of the house, where service gates, utility meters, or external storage sheds may exist. It’s ideal for watching over narrow access pathways and ensuring comprehensive left-to-right perimeter visibility.
Security Role:
- Closes surveillance gap between front and rear cameras.
- Captures side-entry movement.
- Enhances coverage during perimeter patrol playback.
The CAT6 cable drop was placed close to the service path’s internal junction, simplifying maintenance access if needed.

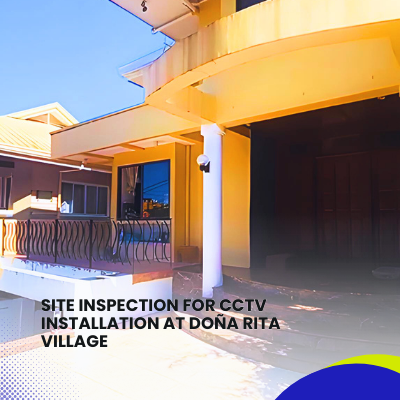

4. Driveway / Garage Area – Outdoor Camera
Location: Positioned to capture the driveway and vehicle area.
This camera monitors vehicle entry/exit points, gate operations, and any interactions that occur within the driveway—particularly deliveries, visitor parking, or gate tampering. With its wide-angle lens, it ensures all vehicle-related activity is under surveillance.
Operational Objectives:
- Protect vehicles and deter theft.
- Capture clear footage of faces and license plates.
- Provide useful data in case of hit-and-run or break-in incidents.
We routed the camera cabling overhead through the carport’s steel framework to keep it neat and free from environmental damage.

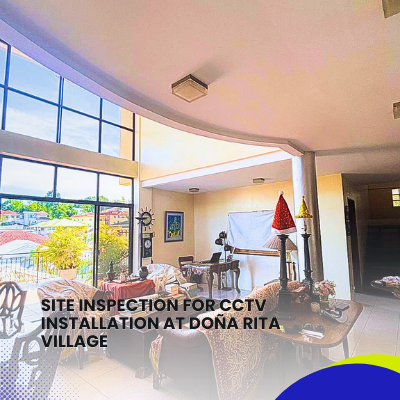

5. Living Room – Indoor Camera
Location: Mounted discreetly in a corner with a wide-angle view of the main entrance and common area.
The indoor camera provides vital monitoring inside the residence, especially for entry points, visitor tracking, and family safety. It’s also useful in cases where additional confirmation of incidents recorded by outdoor cameras is needed.
Purpose & Advantages:
- Allows real-time indoor activity monitoring.
- Supports smart home integration with alerts.
- Useful for checking on house help or service personnel.
This camera was connected using in-wall cabling routed via the baseboard, minimizing visibility and maintaining a clean interior design.
CAT6 Cable Routing and Drop Points
A well-planned cable layout is essential for maintaining both the visual appeal of the residence and the long-term reliability of the system. For this project, high-quality CAT6 cables were used to support HD video transmission and future scalability.
Highlights of Cable Design:
- Shielded CAT6 Cables: Selected for audio-video signal stability, especially for the microphone-enabled camera.
- Overhead Conduits: Used along outdoor walls to minimize tampering and environmental wear.
- In-Wall Pass-Throughs: Drilled and sealed entry points for interior drops to maintain structural integrity and aesthetics.
- Cable Labels & Color Codes: All cables were labeled at both ends and color-coded for easy troubleshooting and upgrades.
Each drop point was planned with expansion in mind, allowing for potential upgrades to IP cameras or the addition of sensors and alarms in the future.
DVR Location and Setup
The Digital Video Recorder (DVR) is the core component of the CCTV system, responsible for video storage, remote access, and overall system management. Its placement requires careful consideration to balance accessibility, security, and environmental factors.
Chosen DVR Location: Inside a concealed cabinet near the electrical panel within the living room utility space.
Why This Spot Was Ideal:
- Centralized location relative to all camera feeds.
- Natural ventilation in the cabinet prevents overheating.
- Close proximity to a power source and network router for stable operation.
- Out of sight to deter tampering or theft.
We installed surge protectors and backup UPS to safeguard the DVR and camera feeds against power interruptions. Additionally, remote viewing was enabled through a mobile app connected via the client’s home Wi-Fi, providing secure and encrypted access to live footage anytime, anywhere.
Recommendations Provided Post-Inspection
After completing the site inspection, we delivered a comprehensive report to the homeowner, including:
- A schematic of camera placements and coverage zones.
- Suggestions for IR-enabled cameras for enhanced night visibility.
- Guidance on network configuration for secure remote access.
- Recommendation to integrate motion detection alerts and cloud backup in the next phase.
We also advised installing optional signage (“CCTV in Operation”) to comply with local privacy laws and enhance deterrent value.
Conclusion
The Residential CCTV Site Inspection at Doña Rita Village highlights the importance of expert planning and customized design when securing a private property. Every home is unique, and the effectiveness of a surveillance system depends not only on the quality of its hardware but also on the strategic deployment of each component. Through our detailed inspection, cable layout optimization, and precise camera placement, the homeowner now enjoys round-the-clock monitoring, clear footage capture, and peace of mind knowing that their residence is well-guarded against intrusions or emergencies.
At Installersph IT Solutions, we don’t just install surveillance systems—we design them to fit your life. If you’re looking to upgrade your home security with a personalized and technically sound CCTV setup, contact us today for a professional consultation
